Security Content Automation Protocol – a set of standards for automated security compliance evaluation and remediation

This category includes blog posts about my contributions to OpenSCAP, SCAP Workbench, SCAP Security Guide and other related projects.

SCAP

openscap HTML report redesign

15 Comments

We have received many requests to change our HTML report in some way. In this post I will try to summarize what it is people want to change and try to come up with a proposal for our new HTML report.

I started with the HTML report but the plan is to update both report and guide generators. They share a lot of code even today, it makes sense to update them both.

Problems with the current approach

openscap uses docbook as an intermediary format. This means that when generating guides or reports, the XCCDF is transformed into docbook using XSLT, that docbook is then transformed into XHTML. This causes several problems.

XCCDF allows XHTML in description, front-matter, rear-matter and others. We have to convert XHTML to pseudo-docbook and then back to XHTML. Data is inevitably lost during this transformation because docbook cannot possibly support all of XHTML.

Furthermore, the maintenance costs of such an arrangement are enormous. The XSLTs are big and hard to navigate through.

I believe benefits gained from using docbook are very small if there are any at all. There are serious issues when trying to generate PDF from our docbook guide/report which leads me to believe that nobody is using alternative output formats.

Current openscap HTML report
Current openscap HTML report

Requested features

Our users have requested several features and changes. I tried to gather some of them and list them here. If you have other suggestions please leave a comment!

  • Rule filtering – for example to hide all passed rules
  • Rule sorting – for example by severity, to form a remediation priority queue
  • Rule full-text search – type CVEs, CCEs, titles, parts of descriptions, filter rules by them
  • Custom branding  – allow downstreams to insert their own logo
  • Generate guide just for the chosen profile – as opposed to generating guide for the default profile
  • Online XSLT used on demand for XCCDFs – could be hosted on open-scap.org and can be used to create reports on demand, OVAL details will be omitted if this arrangement is used

Must-have features

  • Basic functionality even without any JavaScript in a modern HTML5-capable browser
  • Provide all info we currently provide in our HTML report – especially OVAL details in failed rules
  • “media: print” support
  • Proper XHTML passthrough for description, front-matter, rear-matter and other XCCDF elements that allow XHTML

Design proposal

In my opinion we should base the new HTML guide and report on HTML5 and either Pattern Fly or Bootstrap, the project it’s based on.  This should give us a starting point for visuals and usability. The new XSLT will no longer generate any docbook. Users that want PDF reports can generate them from the resulting HTML5.

The main problem with this is that we have to either bundle a lot of JavaScript and CSS, or fetch them from some remote site. From my estimates we would have to bundle ~200 kB with each guide and report. That seems quite excessive. I will try to bring the number down.

If that effort fails a reasonable compromise might be to bundle CSS and fetch JavaScript remotely if available. This means that open-scap.org would have to reliably host JavaScript resources for reports and guides. These would have to be frozen and versioned with diligence. Please note that even if the browser fails to load the JavaScript the basic functionality would still be available.

Prototype 1

What follows is a preliminary prototype. Not all planned functionality has been implemented.

I have used jQuery dataTables for search and sorting functionality. It supports pagination but I am unsure whether we want to use that or not.

Screenshots for the impatient:

screenshot1
Top of the HTML report prototype
screenshot2
Example of a failed rule “panel”
screenshot3
Example of a passed rule “panel”

Full archive of all the code for the rest:

openscap-xsl-prototype.tar.gz

Plans

I would like to get some feedback from the community before I continue with this research. If the feedback is positive I plan to start an experimental branch in the openscap upstream repository with the actual XSLTs.

I can make no promises but the ambitious plan is to have a new HTML report and guide in openscap 1.1.0.

See part 2.

SCAP

XCCDF tailoring

Leave a comment

I would like to informally introduce the concept of XCCDF tailoring because it is not used as much as I would like and I believe the reason is that it is mostly undocumented. We have to go through some basics first.

XCCDF Profile

Profiles are an XCCDF feature that can select / deselect rules and change values that are inputs of the rules (e.g.: password length, various delays, etc… different profiles can have different values without creating multiple rules for the same thing). Even though profiles can change values that act as input to rules we will only deal with selection in this document for simplicity.
Profiles are part of the XCCDF file, the element that specifies them is called <xccdf:profile>.

Example:

<Profile id="xccdf_org.open-scap_profile_unselecting">
  <title>Unselecting</title>
  <select idref="xccdf_moc.elpmaxe.www_rule_1" selected="false"/>
</Profile>
This profile unselects rule number 1 that is (presumably) selected by default.

Profile inheritance

Every profile can act as an ancestor to another profile. The attribute that is used for this is called @extends.

Example:

<Profile id="xccdf_org.open-scap_profile_anti_unselecting" extends="xccdf_org.open-scap_profile_unselecting">
  <title>Not Really Unselecting</title>
  <select idref="xccdf_moc.elpmaxe.www_rule_1" selected="true"/>
</Profile>

Tailoring is a process that affects profiles in an XCCDF without changing the XCCDF file itself. So if it is signed, sha1-ed or otherwise officially “frozen”, you can select/deselect a rule without making any of the signatures invalid.

Other situation where tailoring is suitable is when you have a company-wide policy but one rule of it does not make sense for one particular machine, or perhaps you want to enforce stricter rules on public facing servers? In general you want to make slight temporary (revertible) tweaks to the profile you are using for whatever reason.

Result of tailoring is a tailoring file which is supposed to be used with the XCCDF file for evaluations.

Example:

<?xml version="1.0" encoding="UTF-8"?>
<Tailoring xmlns="http://checklists.nist.gov/xccdf/1.2" id="xccdf_org.open-scap_tailoring_example">
  <status>incomplete</status>
  <version time="2013-01-15T16:00:00.000+02:00">1.0</version>
  <Profile id="xccdf_org.open-scap_profile_anti_unselecting" extends="xccdf_org.open-scap_profile_unselecting">
    <title>Not Really Unselecting</title>
    <select idref="xccdf_moc.elpmaxe.www_rule_1" selected="true"/>
  </Profile>
</Tailoring>

using oscap with tailoring:

oscap xccdf eval --tailoring-file some-xccdf-tailoring.xml some-xccdf.xml

Inheritance and tailoring:

XCCDF Tailoring file can contain profiles created from scratch that do not extend any profile in the XCCDF but this situation is fairly rare. The most usual use case is to inherit some profile and select or deselect a couple of rules. This is a very convenient way to make minor adjustments to tailor the profile to your specific needs. The tailoring in the example above inherits a profile in XCCDF and selects a deselected rule.

scap-workbench and tailoring

Tailoring is the only way to change profiles in the new scap-workbench, for simplicity it is called profile customization in the application to make it more accessible to people not well versed in the SCAP nomenclature.
Creating tailoring files by hand is fairly tedious and error prone. Fortunately, you can now do it conveniently in scap-workbench!
First we open the content that we want to use for scanning, in this example case it is scap-security-guide.
The right profile has to be selected (this is the profile that will be tailored). In the screenshot above the ‘Example Server Profile’ that we wanted tailored is already selected.

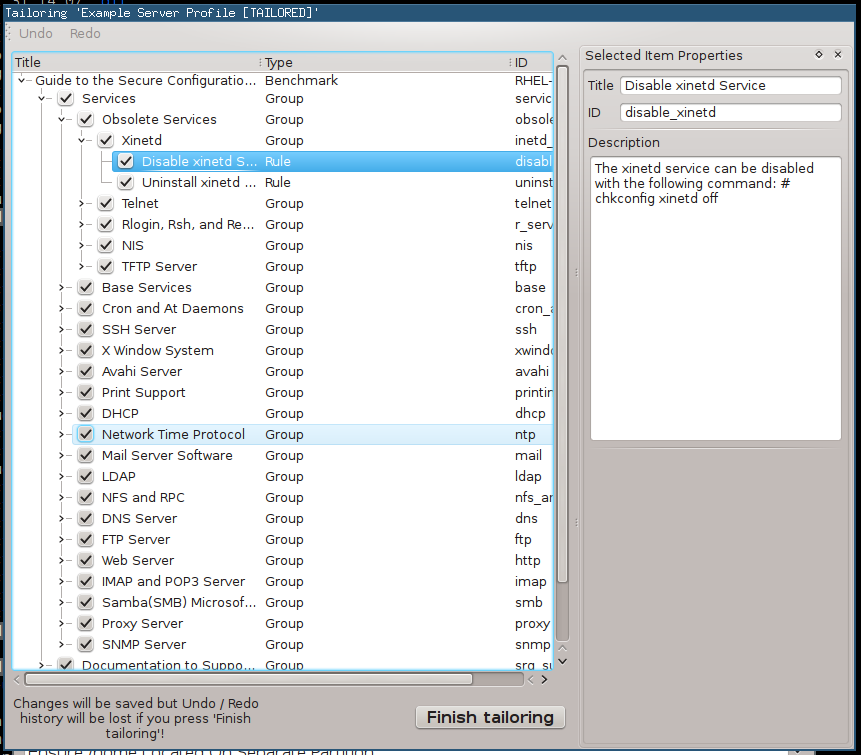

After clicking the Customize button a new window pops up. Notice how the profile is called Example Server Profile [TAILORED] now. Workbench automatically changes the name to make it obvious that this profile is the tailored profile.
Users can navigate this window to see all the rules, the checkboxes next to rules allow them to select or deselect any given Rule. Addition of  elements happens under the hood automatically.
After tailoring is finished click Finish tailoring.
We can now perform evaluation, tailor again or save the tailoring to a file that can be used later (even outside scap-workbench!). Click Save Tailoring.
SCAP

SCAP Workbench redesign

11 Comments

What is SCAP Workbench?

A GUI tool that allows user to perform scans and limited XCCDF editing. Its role is to flatten the learning curve and make entry into the SCAP world easier for newcomers.
I do not believe that it is the only essential tool in the quiver of an SCAP auditor. The main use case is scanning single machines and refining the policy. After everything is set up I expect auditors and admins to scan periodically via the command line oscap tool or a system management tool (e.g. Spacewalk) instead. So workbench should in my opinion avoid feature creep and avoid becoming an all-in-one essential tool.
The old workbench scanning a local machine

Why the rewrite? The workbench is perfect!

No, it really isn’t. The codebase is very large, on the brink of not being maintainable and big portions of it are completely unused. The scanning code is more or less a port of oscap tool code from C to Python. And while the oscap tool from the openscap project is gradually improved, workbench scanning stays the same.
Generally I think we have come to a point when it’s worth it to take learned lessons from the past and rewrite from scratch. Also, openscap is now featuring a high level API that can do most of the heavy lifting for us. Thus the new version can have a very lean codebase.

Working prototype

So far I have created a prototype to prove that the new major features can be done. It is residing (most likely just temporarily) in a github repository at https://github.com/mpreisler/scap-workbench.

Requirements

  • cmake
  • Qt4
  • QtWebKit
  • openscap from git

Notable changes

Using the oscap tool for all scanning

Previously, we used the openscap library’s API to perform the scan. That is done using the oscap scanner in the new version. There are several reasons why this is a good idea. For one we can have just one heavily tested code that does evaluation and rely on it for both tools. Also if the oscap scanner gets certified the workbench ends up using a certified scanner which may be valuable for users. [5]

High level API from openscap

This is done for the workbench to be less likely to break with openscap API changes. The old workbench used to suffer very frequently from this.

Remote scanning

Old workbench can only scan the machine it was running on. The new workbench allows users to scan any remote machine with accessible ssh. It will ssh into a remote machine and run oscap there. oscap scanner must be installed on that machine in order to do that.

Results are fetched back to the machine with workbench for analysis.

Datastream support

SCAP Workbench used to only support XCCDF. The prototype allows you to open a source datastream and select any checklist inside. Going forward, datastreams are the preferred way of exchanging SCAP content so it is essential that workbench supports them.

Remediation

Workbench did not enable users to fix a system so that a rule passes. Since support for remediation has been added to openscap recently, we can simply use the oscap tool to perform it.

So far only online remediation is implemented for both local and remote scans.

The new workflow

I am trying to emphasize straight forward usage for the most common use case. Any special use cases should be hidden behind menus.

When opened, the application immediately pops a file open window and will close itself if user cancels. A file has to be opened at all times in the new workbench. Majority of the work is done in the main window of the application.

Datastream opened in the new workbench

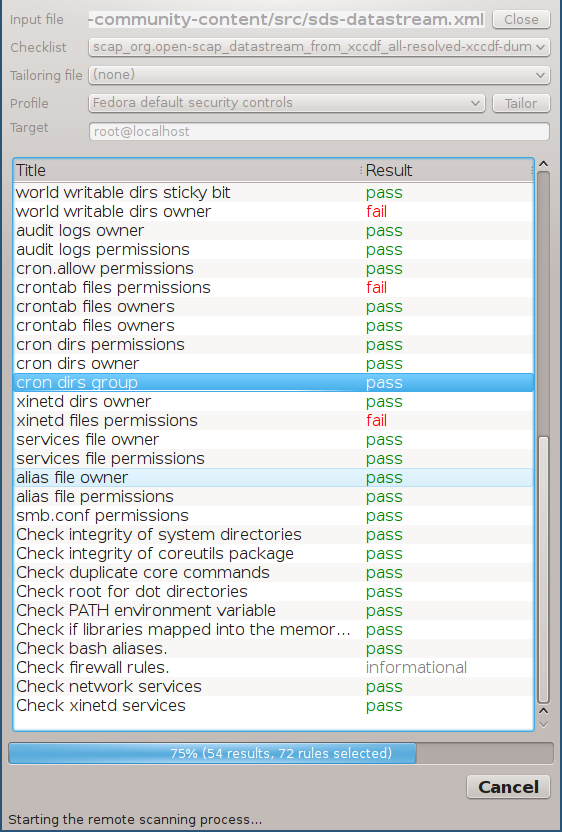

New workbench scanning

Results are shown in a separate modal dialog, as is the option to save them in one of the 3 formats.

SCAP Workbench and its result viewer (uses WebKit)

Future plans

Proper tailoring

Currently, SCAP Workbench doesn’t follow the specification when it comes to XCCDF profile tailoring. It changes profiles directly instead of tailoring them even though the feature is called Tailoring in the tool. The new workbench will work with tailoring files and will correctly inherit the profile to tailor it.
This has been enabled by improvements in openscap that allows profile inheritance and name shadowing.

Offline remediation

Online remediation is not applicable to all use cases. Very often users want additional control over what to remedy. In the future I plan to implement selective remediation that can be applied after scan finishes. User will be able to select or deselect failed rules that should be remedied.

I need some help

At this point I only have a very crude GUI prototype. I am looking at polishing and improving the workflow. As I am not experienced in developing GUI applications I appreciate any help regarding that. Feedback and ideas are very welcome.

References, further reading

SCAP

Introduction to SCAP datastreams with openscap

Leave a comment

What are datastreams?

Datastream can be thought of as an archive of interlinked SCAP content (XCCDF, OVAL, CPE, …). It was introduced in SCAP 1.2 standard. In its purpose it is similar to SCAP bundle known from previous SCAP version and datastreams are expected to replace SCAP bundles. The whole concept is fairly simple but is made confusing because of unfortunate choice of nomenclature. Lets disambiguate the terms first.

There are two types of datastreams: source datastreams (SDS) and result datastreams (ARF). The idea is that the scanner takes a source datastream, evaluates it and gives results in the result datastream format back. What makes things confusing is that each source datastream has a root element called “data-stream-collection” that contains 1 or more elements called “data-stream” inside it! So the datastream is actually a collection of datastreams…[1] The way I think about this is that each source datastream has 1 or more modes in which it can be evaluated. Most datastreams will only have one.

Support in openscap

Datastreams have been supported since 0.8.5 but the code has been continuously improved since then. This guide assumes that you are using the latest openscap, namely version 0.9.3.

Having an up to date libxml2 is also important, libxml2-2.7 or newer is recommended because of various XSD validation bugs in older versions.

Why should I care?

Despite looking like fancy wrapping around SCAP content, datastreams do have extra features that may be valuable to your use case. People creating content might be interested in signing it (uses public key cryptography). [1] [2] [3] Content consumers might like the ease of use and added flexibility.

Another reason is that SCAP datastreams are slowly becoming the recommended way to distribute all SCAP content. I would not be surprised if separate XCCDF and OVAL files are only used for content creation in the coming years.

Evaluating the datastream

Evaluation of datastream means evaluation of either one of the XCCDFs or OVALs in it. The whole process is a bit more involved because of various links and references in the datastream but openscap kindly hides this complexity for us.

Confirming content type

A recommended first step is to make sure the content is what is expected. The oscap tool has a convenient command for this called oscap info.

This will print information about the content, including referenced XCCDF and OVAL components.

$ oscap info datastream.xml
Document type: Source Data Stream
Imported: 2012-12-18T13:46:13

Stream: scap_org.open-scap_example_datastream
Generated: (null)
Version: 1.2
Checklists:
        Ref-Id: scap_org.open-scap_cref_xccdf.xml
                Profile: xccdf_cdf_profile_Default
Checks:
        Ref-Id: scap_org.open-scap_cref_oval.xml
No dictionaries.

XCCDF inside SDS evaluation

$ oscap xccdf eval datastream.xml

OVAL inside SDS evaluation

$ oscap oval eval datastream.xml
openscap automatically detects that given file is a datastream and acts accordingly, splitting it into separate files before evaluation. You can also split it manually and evaluate it in the conventional way, see the next section.
In cases where the datastream contains more OVAL components or more XCCDFs, the user can choose which one to evaluate.

XCCDF with given ID inside SDS evaluation

$ oscap xccdf eval --xccdf-id COMPONENT_ID datastream.xml

It is encouraged to use oscap info as seen in one of the previous sections to print out component-ref IDs and use these for the command-line options.

Similarly with OVAL. Please review the oscap man page for more details about component ref selection (–xccdf-id, –oval-id and –datastream-id).

More options

You can use all the other options you are accustomed to when evaluating a single XCCDF file: selecting profiles in the XCCDF, creating results and guides, … See the XCCDF section of the oscap man page for more details.

Result datastream

If you are evaluating a source datastream it is very likely that you want a result datastream back. There is a special command-line switch to achieve that called –results-arf, it behaves similarly to –results but writes out the file in ARF format instead of the XCCDF results format. ARF stands for Asset Reporting Format and is the standard for result datastreams. [1]

$ oscap xccdf eval --results-arf result.xml datastream.xml

Splitting the stream manually

In some cases it is more suitable to split the datastream into multiple files and work with these. Especially if you already have an established workflow around these files. openscap allows you to do this via its oscap command line tool.
$ oscap ds sds-split datastream.xml target_folder/

If the content inside the datastream requires it, subfolders will be created in the target folder. As was the case previously, you might want to specify –datastream-id and/or –xccdf-id if there are more XCCDFs in the datastream you are splitting. Otherwise, the first suitable XCCDF is used.

Creating a datastream from separate files

openscap also allows you to create a datastream from separate files. The implementation only allows this for the most common case of one XCCDF with one or more OVAL files referenced. The referenced OVAL files are automatically detected and packed in.

$ oscap ds sds-compose some-xccdf.xml target-datastream.xml

References, further reading
